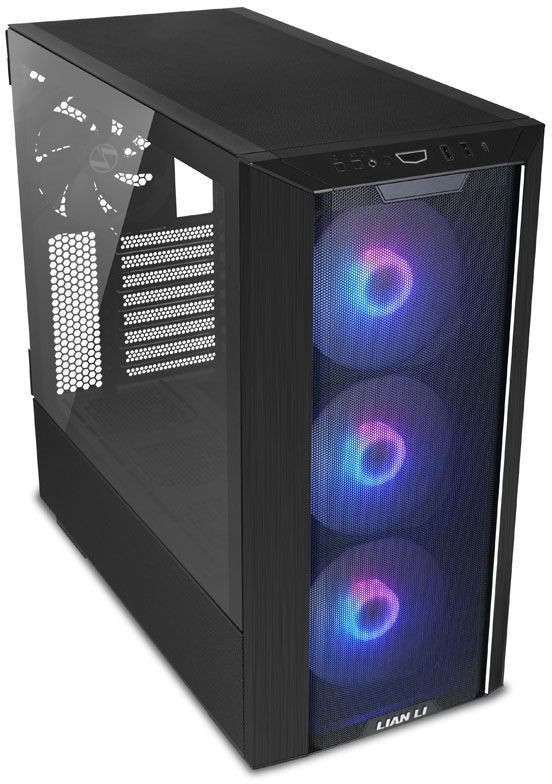

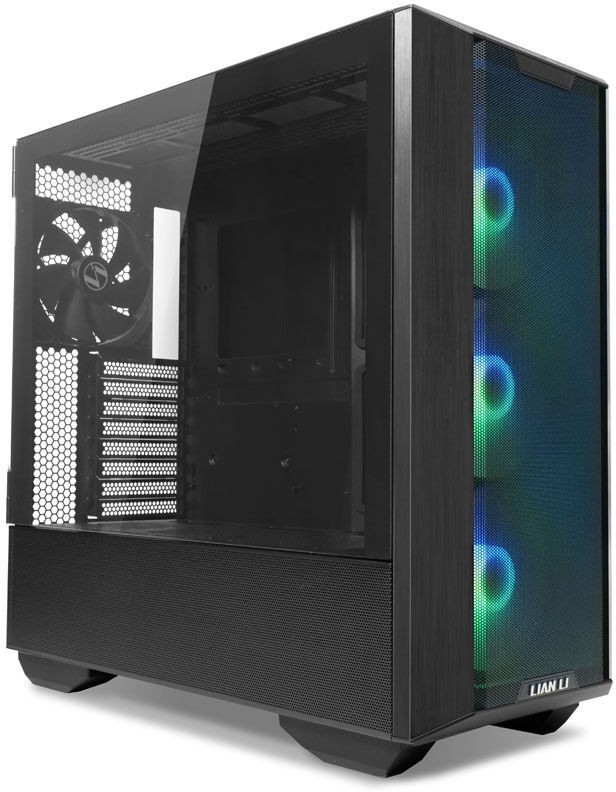

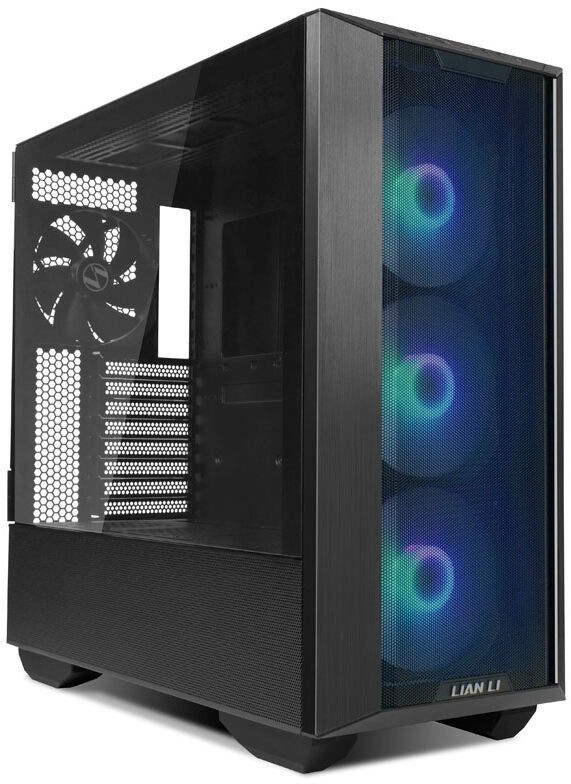

Lian Li LANCOOL III E-ATX корпус, Midi-Tower, RGB - черный
- CPU<: 187 mm
- GPU<: 43.5 cm
- Цвет: Черный
- Тип корпуса: Mini ITX; EATX; ATX; Micro ATX; E-ATX
Elegant Midi-Tower by Lian Li in black, for motherboards up to E-ATX form factor, front with mesh and digital RGB LED lighting, tempered glass side panels, four 140-mm PWM fans pre-installed, 1x 420 or 3x 360 radiator possible
- Mid-tower modular chassis for all kinds of configurations
- Equipped with 4 × 140 PWM fans (ARGB or non-RGB)
- Featured airflow optimized mesh structure and hinged side panels
- Supports up to 420 radiator or 3 x 360 radiators and a maximum of 10 fans
- Offers 12 storage drives mounting locations
- Upgraded cable management solution for a clean build
LANCOOL III
LANCOOL III, the premium mid-tower chassis, offers better thermal performance than LANCOOL II by including 4 pre-installed 140mm PWM fans, and featuring fine mesh panels designed to ensure ample airflow is delivered to the high-end components while the system runs at peak performance.
- Included 4 × 140mm PWM fan
- Fully Mesh Design
- Hinged Flip Panels
- Unprecedented Modularity
- Optimize Cooling Support
- 12 Drive Capacity
- Cable Management with Ease
- Reversible FIO
EXTREME AIRFLOW CRAFTMANSHIP

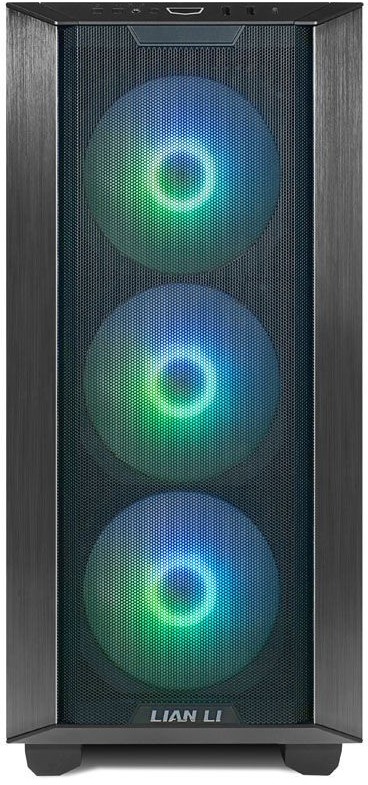

A fine mesh design has been implemented at the front, top, and both bottom side panels of the LANCOOL III.
The two bottom side panels provide sufficient airflow to efficiently cool the GPU when fans are installed above the PSU shroud
The 51% porosity offers an ample direct fresh air intake
HINGED PANELS ALL AROUND

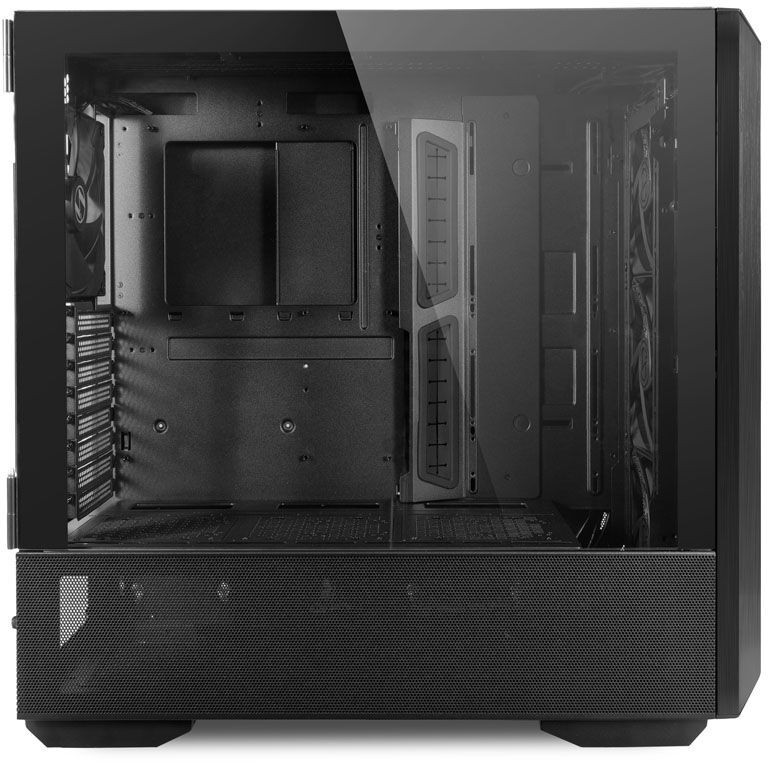

The hinged tempered glass side panels offer an unobstructed view of the interior configuration, while the bottom shroud panels provide quick access to the PSU and storage drives.
The two removable 4mm tempered glass panels located on each side of the case can be opened by pulling the front aluminum handle.
The mesh panels located on both sides of the PSU shroud area can be removed for cleaning when the front panel is unattached.
FLEXIBLE CONFIGURATION
With ample interior room, the LANCOOL III can offer different cooling and usage scenarios
AIR Cooling
With high airflow stock fans, and air tower clearance up to 185mm, the LANCOOL III is ideal for an air-cooling build.
AIO Cooling
With ample front intake, the LANCOOL III can provide strong performance for an AIO cooling build. The top fan bracket can support up to 3 x 120mm/140mm fans and offers enough thickness clearance for an AIO with a 420 radiator/fan combo.
Custom Water Cooling
With the ability to support 3 × 360mm radiators simultaneously, the LANCOOL III can offer custom water-cooling enthusiasts, lots of imagination.
SPACIOUS COOLING SUPPORT
The LANCOOL III is optimized for water-cooling and high-end thermal solutions. A maximum of 10 × 120mm fans or a large 420mm radiator can be mounted in the main chamber.
Multi-way Front Fan/Radiator Bracket
The multi-way front fan bracket offers 4 different ways to mount a radiator or fans to cater to different cooling needs, and features a new latch/handle mechanism to easily secure it in place without the need of the locking thumbscrews.
Scenario 1
Scenario 2
Scenario 3
Scenario 4
Side Multi-Purpose Mounting Slots
Mounting slots beside the motherboard are provided at 105mm apart (standard 120mm fan mounting points) to allow the installation of a distro plate or a reservoir/pump bracket.
EXTENSIVE STORAGE CAPACITY
Multiple storage drive mounting locations are supported for up to 12 x 2.5” SSDs or 4 x 3.5” HDDs and 8 x 2.5” SSDs.
COMPREHENSIVE CABLE MANAGEMENT
As the second chamber located on the right side is visible, great consideration has been given to cable management. The LANCOOL III features an upgraded solution to ensure neat cable routing with toolless magnetic cable cover doors, and a well-organized layout for hubs and cables.
Sliding Cable Routing Cover
By slightly loosening the two back thumb screws, the cable cover can be adjusted to fit different sizes of motherboards.
REVERSIBLE FRONT I/O
Optimized for PC locate on a desk, the front I/O can be relocated to the bottom of the chassis.
- Light Color Button (C) 7 static colors
- Light Mode Button (M) 8 lighting effects, 8th sync to motherboard or L-Connect, Press 3 seconds to turn off the lighting
- Audio
- Reset Button
- Power Button
- USB 3.0
- USB Type C
- USB 3.0
- Power Button
- Reset Button
- Audio
- USB Type C
FRIENDLY PSU INSTALLATION
The removable PSU mounting bracket allows for PSU installation outside of the chassis, to then slide it in through from the rear.
ANTI-SAG BRACKET FOR PERFECTLY HORIZONTAL GPU
A GPU anti-sag bracket is included for a seamless display of the hardware through the side tempered glass panels.
| Dimension | (D) 526mm x (W) 238mm x (H) 523mm |
| Motherboard | E-ATX (width: under 280mm) / ATX / MICRO-ATX / MINI-ITX |
| PSU Clearance | ATX (Under 220mm) |
| Materials |
Aluminum (Door handles), 0.8mm SGCC (exterior and interior), 4.0mm tempered glass (both sides) |
| Included Fans |
Front: 3 x 140mm ARGB PWM fans (300–1650 RPM / DC 12 V, 0.23A, 0.35A, 83.5 CFM / 2.3 mm H2O / 33dB-A) Rear: 1 x 140mm PWM fan (200–1800 RPM / DC 12 V, 0.24A, 83.5 CFM / 2.3 mm H2O / 33dB-A) |
| Fan Support |
Front (multi-way fan/radiator bracket): 3 x 120mm or 3 x 140mm Top: 3 x 120mm or 3 x 140mm Rear: 1 x 120mm or 140mm Above PSU Chamber: 3 x 120mm |
| Radiator Support |
Front: 360mm or 420mm Top: 360mm or 420mm Above PSU Chamber: 360mm |
| GPU Length Clearance | 435mm (Max) |
| CPU Height Clearance | 187mm (Max) |
| Storage |
Behind MB tray: 2 x 2.5" SSD Behind right side PSU shroud panel: 3 x 2.5" SSD Hard drive cage: 4 x 3.5" HDD / 2.5" SSD Above PSU chamber: 3 x 2.5" SSD |
| Expansion Slot | 8 |
| IO Ports | 1 x Power Button
1 x Reset Button 1 x Light Color Button (C) 1 x Light Mode Button (M) 2 x USB 3.0 1 x USB Type C 1 x Audio |
| Dust Filters | 1 x Bottom (Tray) |
| Warranty | 1 year |
